Bruksanvisning FERM BGM1001 Båndsliper

Bruksanvisning

34 Ferm

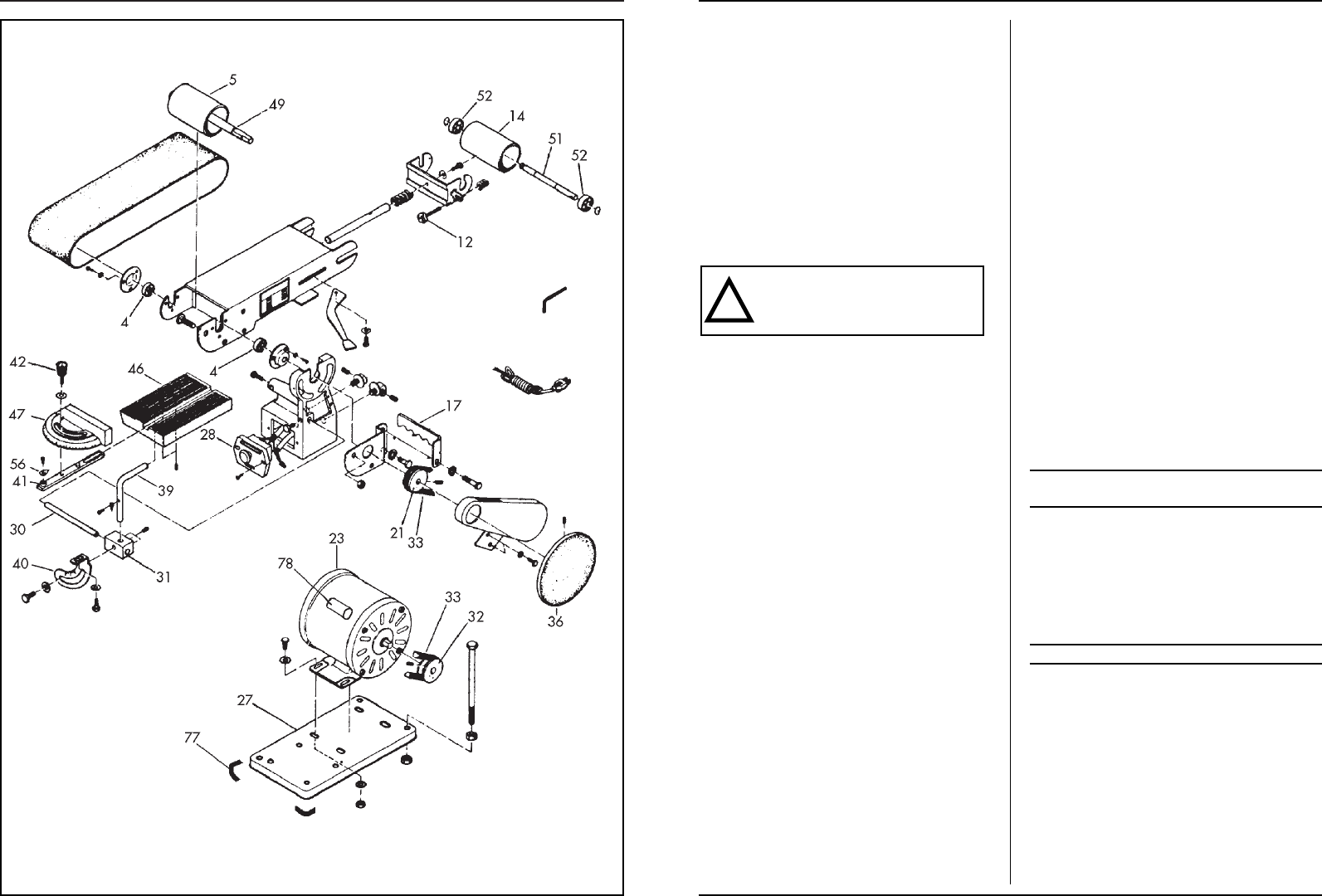

EXPLODED VIEW

Ferm 3

disc with the socket bolt in the side of the disc.

- Place the work plate (12) with the shaft in the machi-

ne frame and secure the work plate with the bolt in

the side of the machine frame. Check with a 90° sash

angle on the work plate and against the sanding disc if

the angle is exactly 90°.

- If necessary, adjust this angle with the calibration indi-

cator.

- The mitre scale (13), which is also supplied separate-

ly, can be placed on the work plate (13). With the use

of this mitre scale the angle of grinding can be deter-

mined precisely.

- The fence (8) for the belt sander can be placed behind

the uppermost bolt of the V-belt guard. In this way

the workpiece can be held firmly against the belt, wit-

hout great hazards.

To prevent the workpiece or your fingers

from getting caught between the work plate

(12) and the sanding disc (11), the space be-

tween work plate (12) and sanding disc (11)

must not exceed 1.6 mm.

THE CHOICE OF SANDING PAPER

With coarse sanding paper (P 60) generally most of

the material can be removed, and fine sanding paper

(P 150) is then used for finishing. An uneven surface is

first treated with coarse sanding paper and sanded

until it is even. Subsequently medium-coarse sanding

paper (P 100) is used to remove the scratches caused

by the first type of paper used. Fine sanding paper (P

150) is used for finishing. The sanding needs to be con-

tinued until the surface is smooth.

THE PLACING OF THE SANDING PAPER (SEE

FIG. 2)

When the sanding machine is held with the sanding

disc turned towards you, the sanding belt moves from

right to left along the upper part of the machine. Be-

cause of this turning direction the workpiece will be

pressed against the right side of the fence. An arrow

on the inside indicates the right direction of running

of the sanding belt (see drawing). If no direction is in-

dicated, the sanding belt must be placed in such a way

that the elevated part of the seam is placed into the

turning direction of the belt. So it is very important

that the sanding belt is placed in the correct way. The

machine uses standard 100 x 915 mm sanding belts

(nr 7):

- Remove the plug from the mains socket;

- Push the clamping handle completely to the right

to take away the tension of the transport rollers;

- Push the sanding belt along both of the transport

rollers, starting from the back of the machine;

-

Push the clamping handle completely to the left.

Now the sanding belt should be completely tight.

- Turn the transport roller exactly in a right angle to

the direction of the sanding belts with the use of

the winged nut at the right roller. The direction of

running of the belt is adjusted correctly if the sides

of the sanding belt are running parallel to the be-

aring plate.

THE SANDING DISC

Paper or “velcro” plates are used for the sanding disc.

The standard diameter is 150 mm. The plates are self

adhesive.

VERTICAL PLACING OF THE SANDING BELT

(SEE FIG. 4)

For more flexibility of the sanding belt its bottom side

can be used, because there is no bearing plate. For an

easy reach of this bottom side the sanding belt can be

placed in vertical position:

- Loosen the two nuts (1) at the front of the sanding

machine, around the left transport roller shaft,

with the use of an open-end spanner;

- Push the sanding belt up in the position desired;

- Fasten the two nuts (1) again;

- The workpiece can now rest on the worktop in-

stead of on the sanding belt;

- The work plate which is used for the sanding disc

can now be pushed with the shaft into the hole of

the machine frame, at the left side of the sanding

machine;

- Fasten the bolt at the back of the machine;

- The work plate can now be used as support for

the sanding of the work piece against the sanding

belt.

5. PUTTING THE MACHINE INTO

OPERATION

- Press the switch into position ‘1’ to put your sanding

machine into operation.

- To switch off the machine the same switch needs to

be pressed to position ‘0’.

- Always keep the mains cable away from moving parts.

- There is no need to apply any pressure with the

workpiece, because this only slows down the speed

of the sanding disc.

6. SANDING OPERATION

The sanding belt and disc supplied with this sanding ma-

chine are suitable for the sanding of metal, wood or syn-

thetic surfaces. The workpiece should always be held

firmly during sanding. No extra pressure is needed. Gui-

de the work piece up and down over the sanding belt, in

order to prevent the sanding belt and plate from wearing

through in one place. Round objects can be sanded at the

ends of the sanding belt (see Fig. 3). Work pieces which

are longer than the sanding machine can be sanded by re-

moving the fence.

NB: To prevent splintering, wood always needs to be

sanded in the longitudinal direction of the grain.

!
